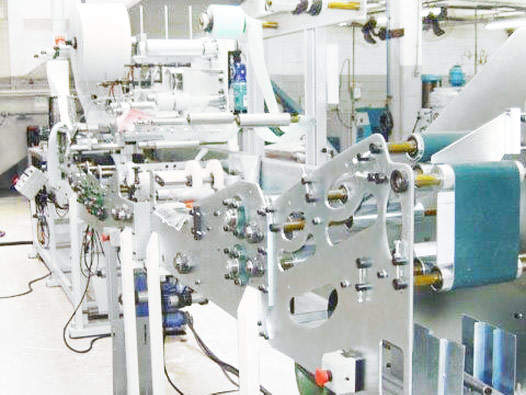

Bambina Plus
FB-V022-P
Bambina Plus is the most economic machine in the VANMAQ baby line, making it a low investment machine that is allied to high efficiency. It is the smallest machine in the baby line and due to this guarantees an elevated rhythm of production while maintaining VANMAQ´s well-known quality standard.
| Technical File | |
|---|---|
| Type | FB-V022-P |
| Model | Bambina Plus |
| Production Capacity | 120 units/min. |
| Incoming Tension | 3Ø 220Vac (60Hz) |
| Total Installed Power | 24KW |
| Pulp Gramature | 650-950g/m2 |
| Product Width | 260mm – 340mm (adjustable) |
| Dimensions and Weight (Approximately) | |
|---|---|
| Length of the Machine | 7500mm |
| Width of the Machine (Maximum) | 850mm |
| Height of the Machine (Maximum) | 2200mm |
| Length of the Mill (Maximum) | 1050mm |
| Width of the Mill (Maximum) | 840mm |
| Height of the Mill (Maximum) | 1500mm |
| Approximate Weight | 3000kg |
All the machines produced by VANMAQ have remote access.Created to facilitate your production operation in your factory, the control of the machines by remote access is very fast and practical. Through an internet connection, it is possible to have total control of the equipment used in the production line in real time.
